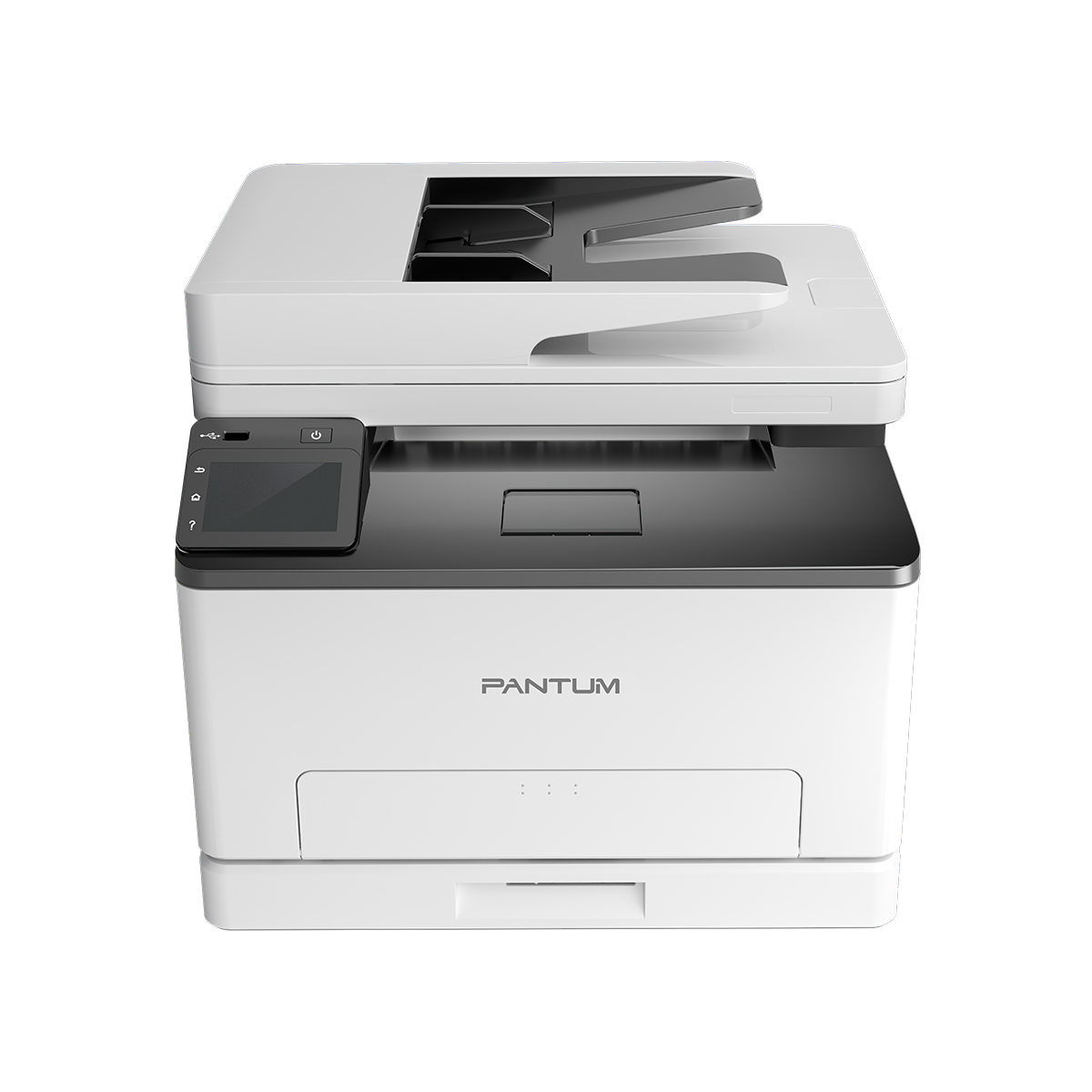

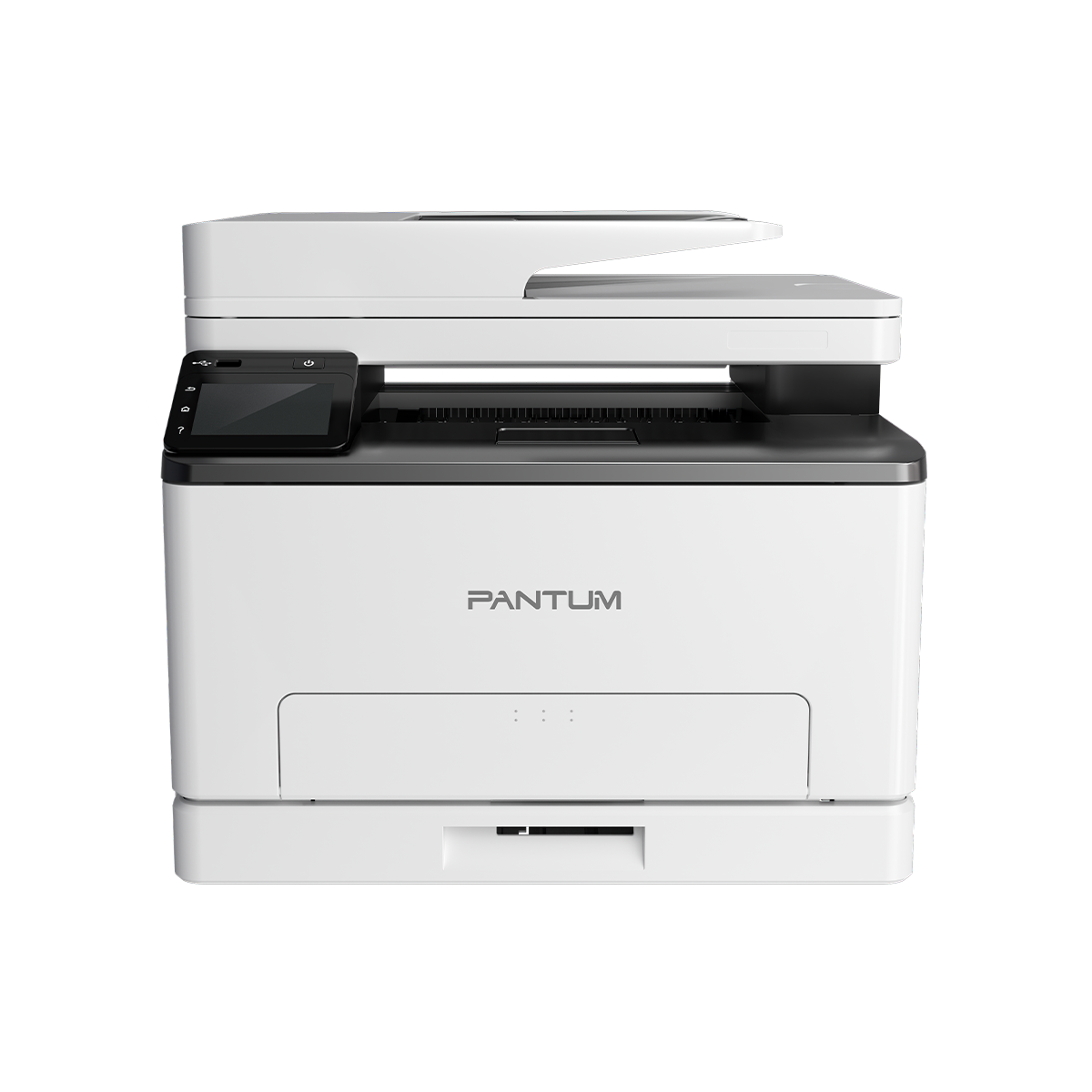

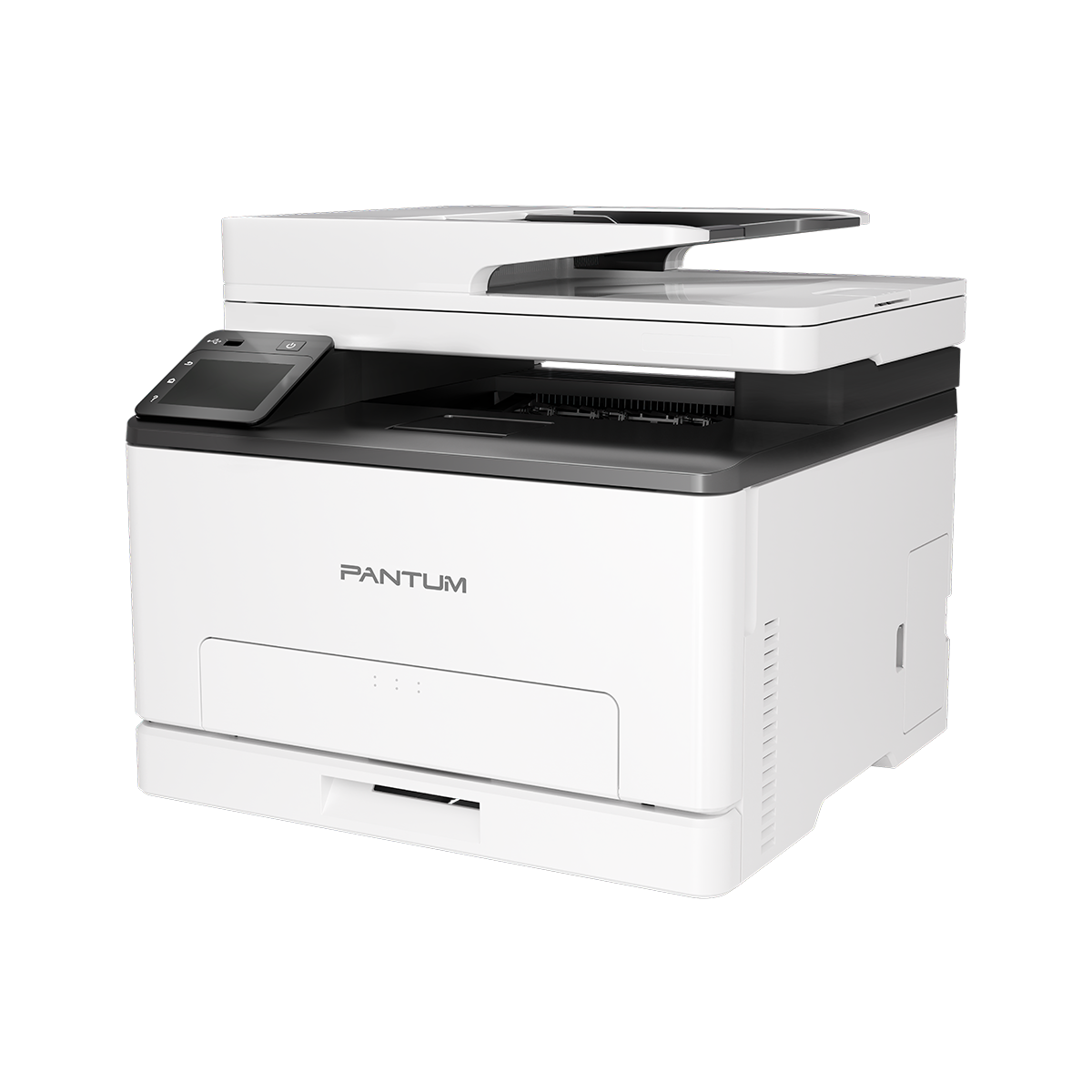

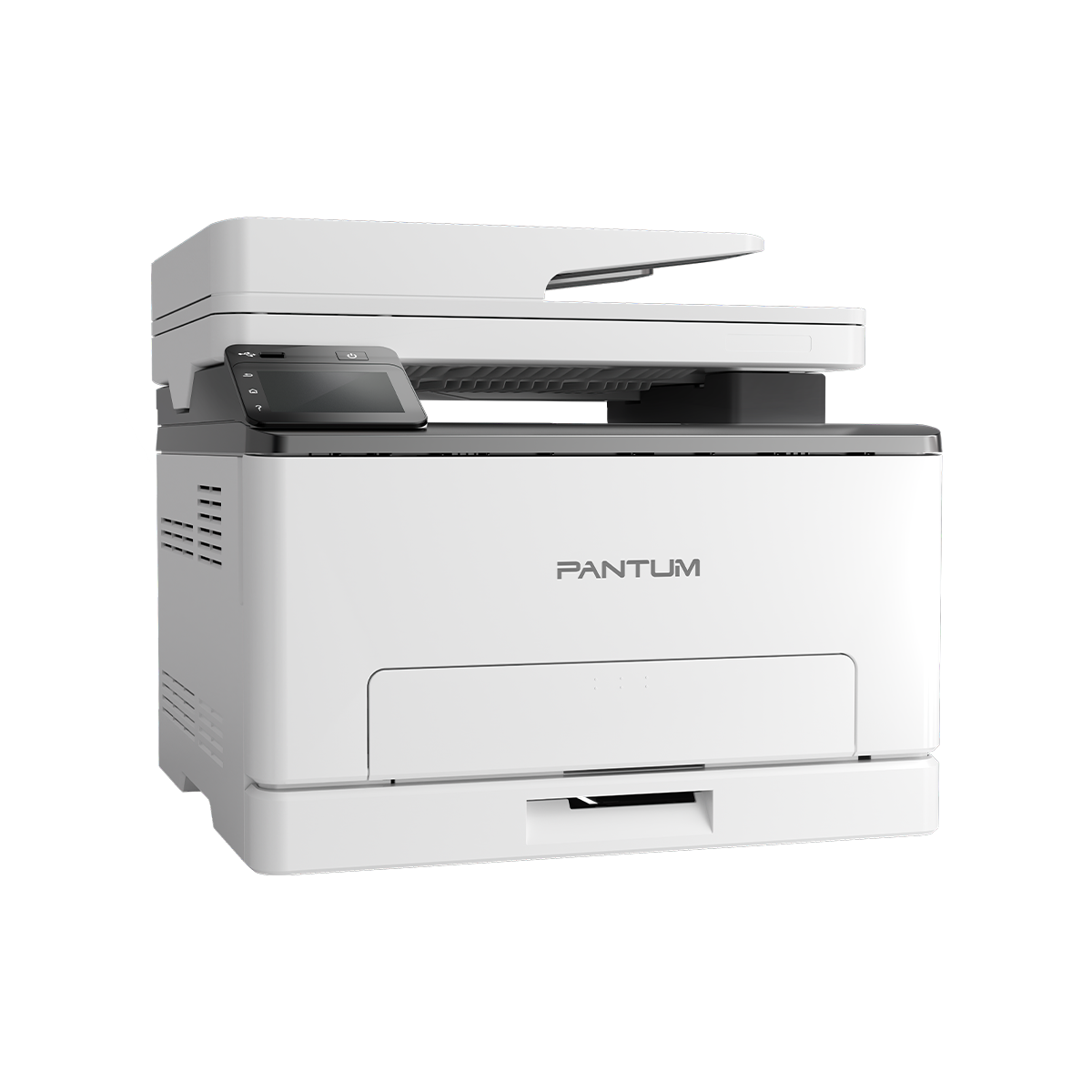

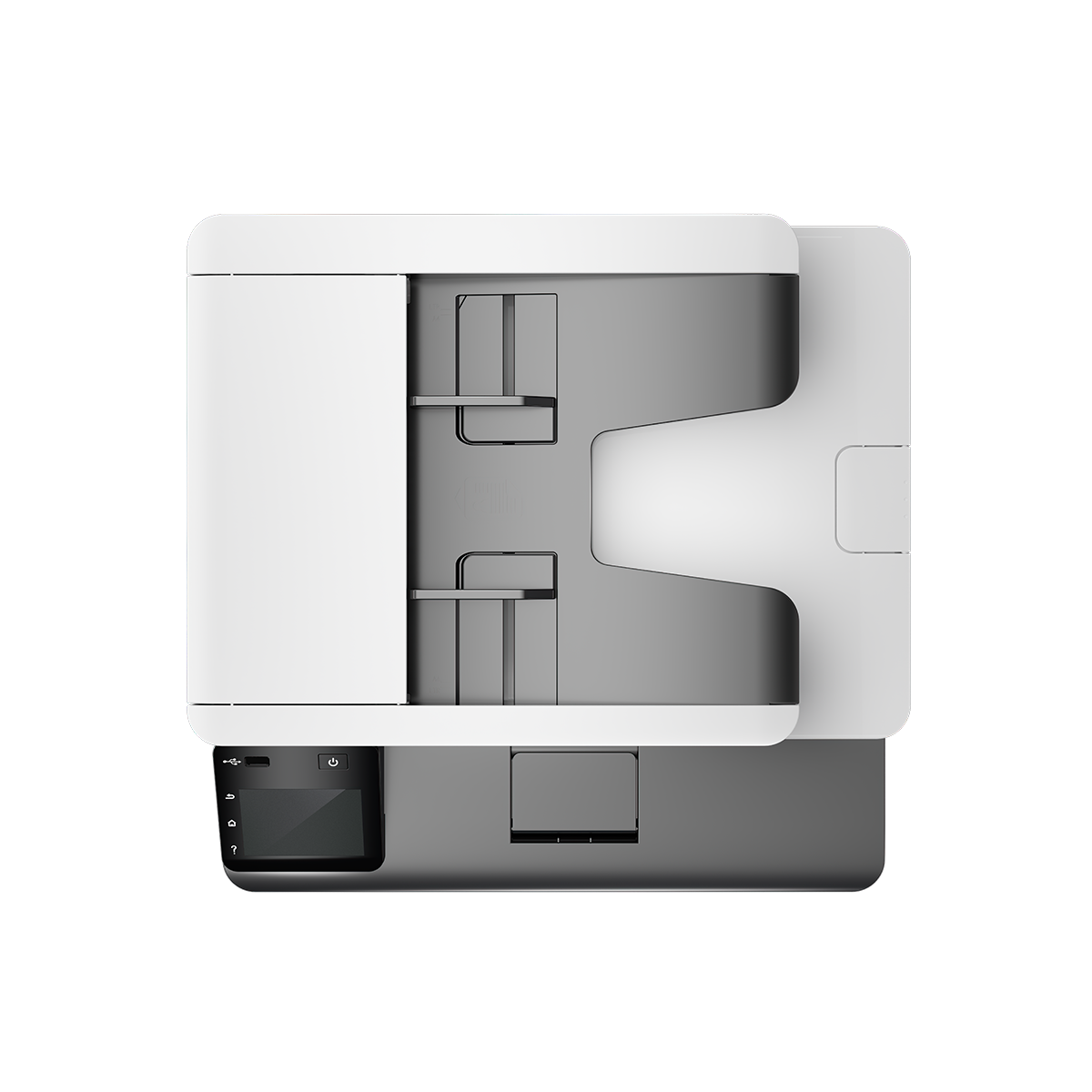

CM1100ADW Color laser multifunction printer

  • Printing speed:18ppm
  • Connection method:USB+NET+WIFI
  • Basic function:Print、Copy、Scan
  • Special function:
  • -Simple One-step Driver Installation
  • -High Processor Speed and Memory
  • -Compact Exterior and Metal Frame
  • -Mute Mode
  • Other Model:
    Select a model
Product Spec
Model
Model: CM1100ADW
Print Specification
Print speed(A4/LTR) 18ppm(A4) ; 19ppm(LTR)
Duplex Print speed 6ppm(A4) /6ppm(LTR)
First print out time Mono:10s;Color:11s
Resolution Optical:600*600dpi;Maximum:1200*600dpi
Printer language PCL6/PS3
Processor speed 1GHz
Memory 1GB
Recommended monthly page volume 300-1500 Pages
Maximun Monthly duty cycle 30000 Pages
Control panel 3.5 inch touch screen
Other printer function Watermark Printing Poster Printing Multi-page in one Printing Brochure Printing One step driver installation
Direct USB YES
Standard Ports USB2.0(High Speed) IEEE802.3 10 /100Base-Tx IEEE802.11b/g/n(support WPS)
Mobile print Airprint ; Mopria ; Pantum App
Duplex Printing Auto
Paper handling
Paper Input Capacity 250 Pages
Multipurpose tray 1 Page
Paper output capacity 100 Pages
Media types Plain:70~105g/m² (Including 105g/m²) Thin:60~70g/m² (Not including 70g/m²) Thick:105~200g/m² (Not including 105g/m²) Transparency/Cardstock/Label/Envelope
Media sizes A4、 Letter、 Legal、 Folio、 Oficio、 JIS B5、 ISO B5、 Executive、 Statement、 A5、Big 16K、16K、Big 32K、32K、 A6、 No.10 Env、 Monarch Env、 DL Env(Envelope No. 5)、 C5 Env(Envelope No. 7)、 C6 Env、 Yougata4、 Younaga3、 Nagagata3、 Yougata2、 ZL (Envelope No. 6)、 Postcard、B6、 Japanese Postcard Custom: minimum 96x148mm~maximum 216x356mm
Media weights Standrad tray:60~200g/㎡ Multipurpose tray:60~105g/㎡
Copy Specification
Copy color color/black
Copy speed 18ppm
Copy Resolution FB mode:Max 600*600 dpi ADFmode:Max 600*600 dpi
First copy out time FB:16s ADF:18s
Max.copy page 99Pages
Copy reduce / enlarge settings 25%-400%
Copy function ID copy Receipt copy N-up copy Clone copy poster copy
Scan Specification
Scanner type FB+ADF
Scan mode Color、Gray、Monochrome (PC only)
Scan technology CIS
ADF scan speed 18ppm (300*300 dpi)
Scan to PC/Email/FTP/USB flash disk /ios/Android
ADF capacity 50Pages
Scan to USB Yes
Format JPEG、TIFF、PDF
Color scaning Yes
General
Printer Dimensions(W×D×H) 401*411*358mm
Weight(with cartridge ) 19.4kg
Package Dimensions(W×D×H) 535*555*456mm
Total Weight(Include Printer ,cartridge and package ) 22.1kg
Noise Level print/scan≤52dBA copy≤54dBA Mute≤47dBA standby≤30dBA
Power consumption Print Average:≤380W Standby: ≤10W Dormant:≤1W Off:≤0.15W
Power AC 110-127V,50Hz/60Hz,7A AC 220-240V,50Hz/60Hz,3.5A
Print environment Operating temperature:10-32℃;Relative humidity:20% ~ 80%RH;Altitude:≤2000m
Operating system compatibility Windows XP/Windows7/Windows8/Windows8.1/Windows10/Windows 11/Windows server/2012/2016(32bit/64bit) ; Mac10.9~12 ; ubuntu16.04、18.04、20.04
Consumable
Consumable type One-piece
Starter cartridge CTL-1100K:1000Pages CTL-1100C/CTL-1100M/CTL-1100Y:700Pages
Cartridge model and yiled ①CTL-1100K:1000Pages、CTL-1100C/CTL-1100M/CTL-1100Y:700Pages ②CTL-1100HK:2000Pages、CTL-1100HC/CTL-1100HM/CTL-1100HY:1500Pages ③CTL-1100XK:3000Pages、CTL-1100XC/CTL-1100XM/CTL-1100XY:2300Pages
Waste powder bottle CWT-1100:15000Pages
Note (1)The toner cartridge capacity is the average print volume of the toner cartridge during continuous printing in the single-sided mode, based on the ISO/IEC 19798 standard. Actual print volume may vary based on other factors such as paper size and feed direction, toner coverage, tray source, percentage of black-only printing, and average print job complexity
